You decode the bands on a little tan resistor: yellow, violet, brown, gold. That is 470 ohms. Then you put a multimeter across it and the display says 483. Or 461. Or 471.2. For a moment you wonder whether you read the colors wrong, whether the part is damaged, or whether the meter is lying.
Almost always, none of those is true. The resistor is doing exactly what it was built to do, and the gap between the printed value and the measured one is a feature of how resistors are made and sold. This guide explains where that gap comes from, how to tell a healthy part from a suspect one, and when the color code is enough versus when you should measure.
What the Color Bands Actually Promise
A color code is a short label, not a guarantee of an exact number. On a common four-band resistor, the first two bands are digits, the third is a multiplier, and the fourth is the tolerance. Yellow, violet, brown, gold reads as 4, 7, times 10, plus or minus 5 percent. The electronic color code is a standard that manufacturers and hobbyists worldwide agree on, which is why you can decode a part without a datasheet.
The key word is the last one. The tolerance band is a promise about a range, not a point. A 470 ohm resistor with a 5 percent tolerance is guaranteed to land somewhere between 446.5 and 493.5 ohms. Any value in that window is a pass, and a reading of 483 sits comfortably inside it.
Tolerance Is the Reason Nothing Reads Exactly
Making a billion identical resistors with identical resistance is not physically realistic. Film thickness, trimming, and material purity all vary a little, so factories measure the finished parts and sort them into tolerance grades. The tighter the grade, the more the maker charges, because more parts get rejected or downgraded.
That is why the tolerance band carries real information. Gold means 5 percent, silver means 10 percent, brown means 1 percent, red means 2 percent, and the finest grades go down to a fraction of a percent. When you are choosing parts, the tolerance tells you how far from the printed value you should be prepared to see a reading land, and how far your circuit can drift before it stops working.

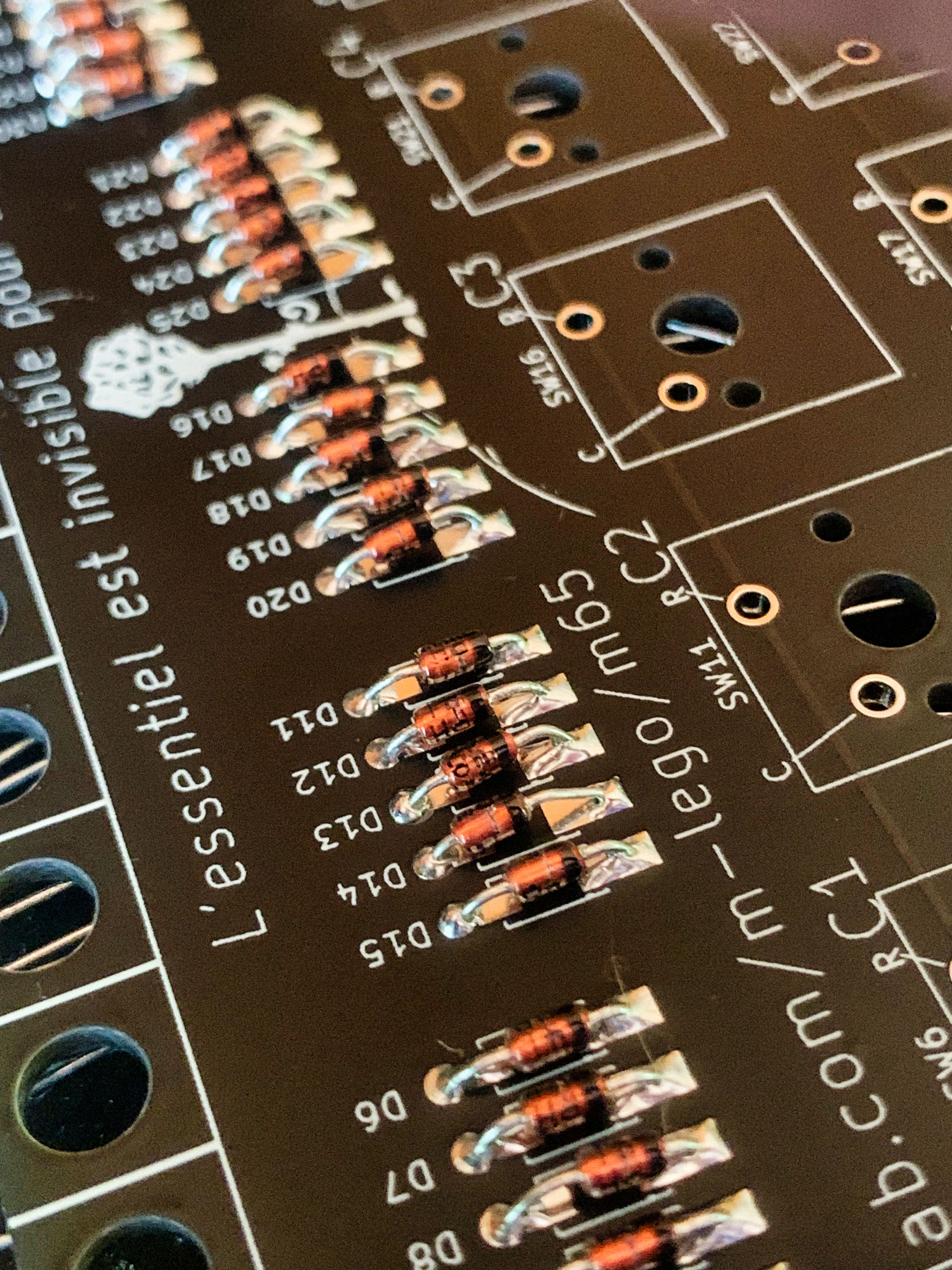

Photo by Alexey Demidov on Pexels
Why Values Come in Odd Steps Like 47 and 68
Anyone who has shopped for resistors notices something strange: there is a 47, a 68, a 82, but no 50 or 70 or 80. Those steps are not arbitrary. They come from the E series of preferred numbers, a system that spaces values roughly evenly on a logarithmic scale so that each step is a similar percentage larger than the one before.
The E24 series, which covers the common 5 percent parts, has 24 values per decade: 10, 11, 12, 13, 15, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 43, 47, 51, 56, 62, 68, 75, 82, and 91. The E12 series keeps every other one for 10 percent parts, and the E96 series packs in 96 values per decade for 1 percent parts. The spacing is chosen so that the tolerance bands of neighboring values just about touch, which means any resistance you need is within tolerance of some standard value.
The Gap Between Calculated and Standard Values
This matters the moment you design something. Ohm's law rarely hands you a number that exists on the shelf. Suppose you power an LED from a 9 volt supply, the LED drops about 2 volts, and you want 15 milliamps. The resistor has to drop 7 volts at 15 milliamps, which is 466.7 ohms.
There is no 466.7 ohm part in the E24 series, so you choose the nearest standard value, which is 470. The difference is well under one percent, far smaller than the tolerance of the part you are buying, so the extra error is invisible in practice. Rounding to the nearest standard value is not a compromise. It is simply how the whole system is meant to be used.
Reading Which Way the Bands Run
A surprising amount of confusion about a "wrong" reading is really confusion about which end to start from. The tolerance band is usually gold or silver, and it is often spaced slightly further from the others. Hold the part so that band is on the right, then read from the left.
Gold and silver cannot be the first digit, so if you see one of them at an end, that is the end to finish on. When the part has no gold or silver band, such as a 1 percent five-band resistor, look for the band that is set apart by a wider gap, or check the body for a slightly bulkier first band. If you are still unsure, decode it both directions and see which result is a real standard value. A sanity check against the E-series list above settles most doubts quickly.
Four, Five, and Six Bands Tell Different Stories
Four-band parts use two significant digits and are the standard for 5 and 10 percent resistors. Five-band parts add a third digit, which is how 1 percent and tighter parts express values like 4.99 kilohms that two digits cannot capture. Six-band parts add a temperature coefficient on top.
Read the same 470 ohm value both ways and you can see the difference. As a four-band part it is yellow, violet, brown, gold. As a five-band 1 percent part it is yellow, violet, black, black, brown, which reads as 4, 7, 0, times 1, plus or minus 1 percent. Same nominal value, much narrower window, and the extra digit is what makes the finer values possible.
Photo by Mahdi Bafande on Pexels
What the Sixth Band Means for Real Circuits
The temperature coefficient band says how much the resistance moves as the part heats or cools, expressed in parts per million per degree Celsius. Brown is 100 ppm per degree, red is 50, orange is 15, yellow is 25, blue is 10, and violet is 5. For most hobby circuits this never matters.
It starts to matter in precision work. A 470 ohm part with a 100 ppm coefficient that warms by 50 degrees shifts by about 2.35 ohms, roughly half a percent. That is trivial in an LED circuit and potentially important in a measurement circuit or a voltage reference, where the whole point is stability.
When the Color Code Is Enough
For the vast majority of jobs, trust the bands. LED current limiting, pull-up and pull-down resistors, simple filters, and most logic-level work have margins wide enough to absorb 5 percent without noticing. If a part decodes to a standard value and your circuit works, there is nothing to investigate.
The color code is also the fastest way to sort a mixed bag of parts. Reading a few bands takes seconds, and doing it by eye beats digging out a meter for every part. A decoding tool helps when you want to confirm a tricky one or work backward from a target value, and a free resistor color code calculator from EvvyTools handles four, five, and six bands and also finds the nearest standard value for a number you calculated.
When to Reach for a Multimeter
Measure when the circuit is sensitive to the exact value, when you suspect a part has been damaged, or when the colors are hard to tell apart. Aged parts darken, and red, orange, and brown can look nearly identical under a dim bench lamp. A multimeter removes that ambiguity in a few seconds.
It also helps to measure a handful of parts from the same strip to see how they cluster. If a bag of 5 percent resistors all read within a percent or two of the printed value, you are probably looking at parts that are better than their rating, which is common. A reading well outside the tolerance window, on the other hand, is worth taking seriously.
How to Measure Without Fooling Yourself
The most common measuring mistake has nothing to do with the resistor. If you leave the part soldered into a circuit, every other component connected to it forms a parallel path, and the meter reports the combined resistance, which is lower than the part alone. For a trustworthy reading, lift at least one leg of the resistor free of the board or test it before it is installed.
Keep your fingers off the probe tips and the leads, because your body adds its own resistance in parallel and drags a high-value reading down. Choose a range that suits the value, let the reading settle for a second, and remember that cheap meters have their own tolerance, often a percent or two. For leads with noticeable resistance of their own, short the probes together first and note the offset, which matters when you are measuring tiny values.
Photo by Bulat843 🌙 on Pexels
A Quick Way to Judge a Suspect Part
Here is a simple routine. Decode the bands and write down the nominal value and the tolerance. Compute the allowed window by multiplying the value by the tolerance percentage and adding and subtracting it. Then measure and compare.
If the reading sits inside the window, the part is good. If it is slightly outside, check your meter and the lead resistance before blaming the resistor. If it is far outside, say double or half the nominal value, suspect either a misread color or a damaged part, and re-check the bands in better light. A resistor that has been run too hot often reads high and shows a scorch mark or discolored body, which is a clear sign to replace it.
Choosing a Tolerance for Your Own Projects
Picking a tolerance is a trade between cost and the margin your circuit needs. For indicator LEDs and general digital work, 5 percent is plenty. For voltage dividers that set a reference, amplifier gain, or anything where two resistors must match, a 1 percent part is cheap insurance and is easy to find in the E96 series.
Matching matters more than absolute accuracy in many designs. Two 1 percent resistors in a divider keep their ratio close even if both drift together, while two 5 percent parts can be off from each other by several percent. When in doubt, spend the few extra cents on the tighter grade and save yourself a debugging session.
The Short Version
A resistor's color bands describe a nominal value and a tolerance window, not an exact number. A reading a few percent off is normal, and standard E-series values exist so that any target resistance is within tolerance of something you can buy. Decode from the end opposite the gold or silver band, check the result against the standard value list, and measure only when the circuit demands it.
